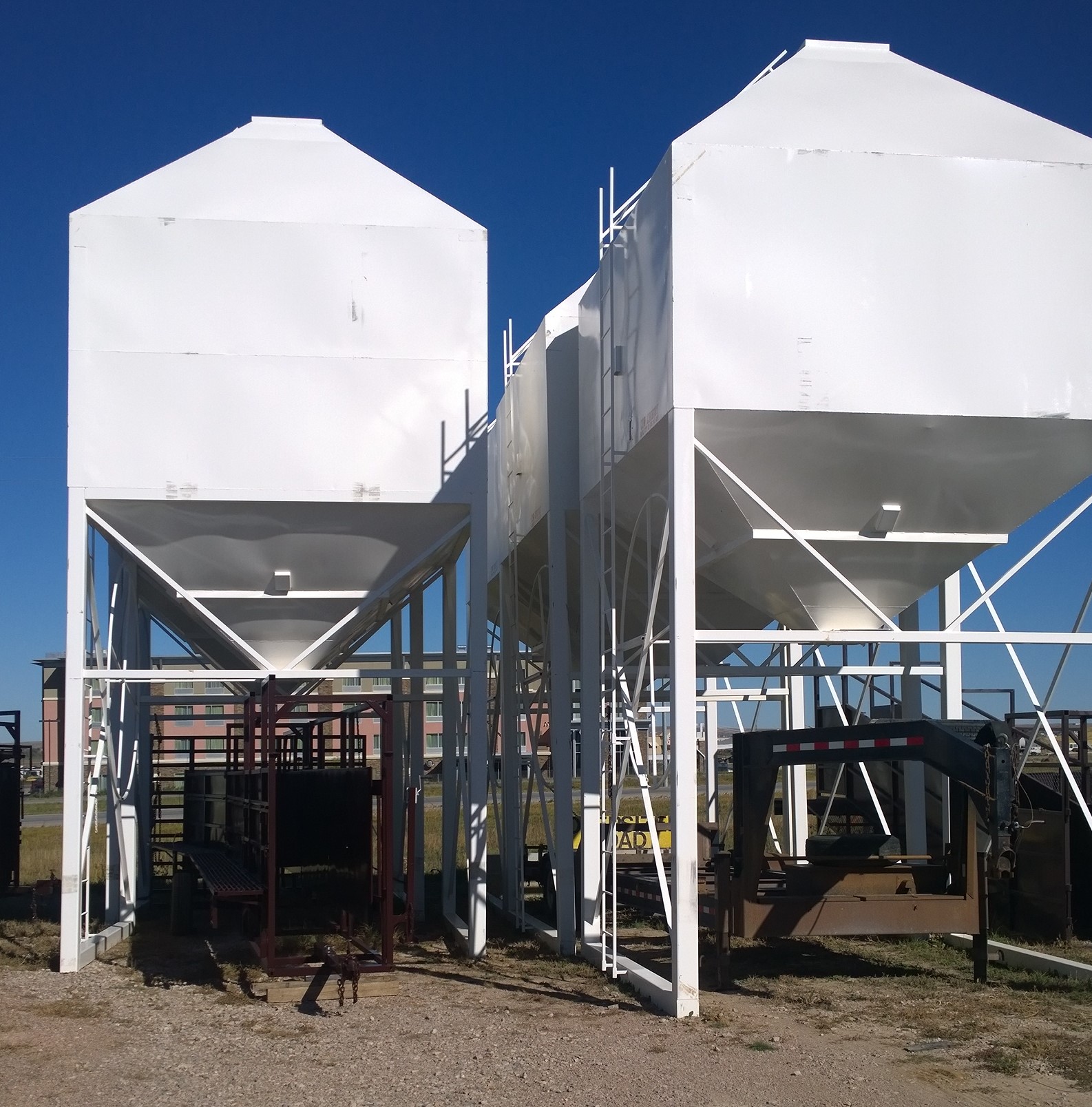

OVERHEAD BULK BINS

28 / 40 TON

The main body of the 28 ton bins are

constructed out of 12 gauge steel


All seams on our bin are welded inside and

out for strength and to prevent moisture


Legs / Base are made from

6 x 6 x 1/4" square tubing

Legs are mounted inside the bin for

Strength and Stability and Looks


Has 7 vents on Body Plus a 10" x 10" Vent

on Lid to keep Moisture to a Minimum


All bins are acid washed and then rinsed

Then painted with

2 coats of rust inhibiting paint


Outside ladder that goes to the

top of Bin allows access to Top Door


The top fill hole can be

opened from the ground

28 Ton- 1150 Bushel, 1456 Cubic Foot

40 Ton- 1540 Bushel, 1930 Cubic Foot

Angle Irons are cut @ 45° then Welded

together to Reinforce Bottom Cone that

keeps it from Expanding.

Our large steel wheel makes it

easy to open and close the trap door

The Structure

Braced  on all Four Sides with

Square Tubing and Angle Iron

Standard Drive thru Clearance 8' 6"

(Optional up to 14')


(Point Mouse Over Picture to See the Bin Put in Place)

(Then refresh page to see the beginning again)
Overhead Bins can be Delivered Anywhere

South Dakota, North Dakota, Montana, Wyoming,

Nebraska, Minnesota, Colorado, and More.

Hydraulic Trailer, Standing the Overhead Bins From Horizontal to Vertical

We can also move an existing bin to a new location for you.


Contact Us for More Information
